  1) SS Showers

  High Pressure Oscillating Shower

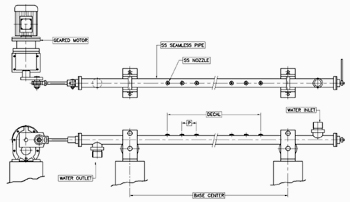

An oscillating type of shower provides continuous movement of the shower to assure complete & uniform coverage with minimal wastage. It consists of a gear motor assembly which is connected to an eccentric disc. This disc converts the rotational motion to lateral motion of the shower, thereby ensuring proper spray on the wire.

Precision nozzles ensure that the water is sprayed uniformly over the wire. The shower system is also fitted with a brush assembly which helps in proper cleaning of the shower. The brush assembly consists of set of nylon brushes and a hand wheel. They are designed in such a manner that their interference does not restrict the flow of water through the nozzles.

Oscillating showers are used in all types of applications where high-pressure water jets are required to clean paper machine fabrics or cylinders. If these showers were not oscillating, the high-pressure jet impact would otherwise damage the fabric or cylinder.

Features :
1. Shower piping is 316 Stainless Steel
2. Nozzle type, orifice size and spacing are carefully matched to the shower’s application
3. Nozzle basses are welded to the pipe
4. Brush assembly to perform cleaning operation.
5. +/- 100 mm stroke length.

Advantages :
1. Rugged in construction
2. Simple in Operation
3. Operates at High Pressures
4. Ideal for many papermaking application
