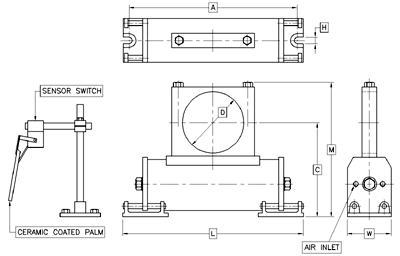

Pneumatic Auto Guide System (Piston Type) are designed for
use in wire, press and dryer section of paper machines. All
piston guides have a compact, enclosed design.
portion of sensing palm that comes in contact with the
fabric is fitted with a ceramic coated strip thus giving
a very long life to the palm and also avoids any damage
to the fabric due to wear on the sensing palm.
Suitable for wires, felts &
Normal working pressure @ 3.0 Kg/cm2
Adjustable stroke, maximum stroke
upto 60 mm on either side
Returns to central or present position
in the event of air system failure
Built in manual over ride.
feedback unit for excellent guiding results
